◒ 四核arm cortex-a53 cortex-m7处理器，主频最高达1.6ghz
◒ soc内置npu，ai算力可达到2.3 tops
◒ 支持4gb lpddr4 3200mt/s 内存
◒ 集成两路10/100/1000mbps以太网
◒ 支持lvds/hdmi/dsi显示接口
◒ 支持com、usb、pcie、gpio、高速io等
◒ 集成fpga芯片，可提供30 路高速io
◒ 采用mxm接口，由研智科技制定统一的管脚定义规则
"精灵"系统核心板
产品介绍产品规格外形尺寸技术规格书

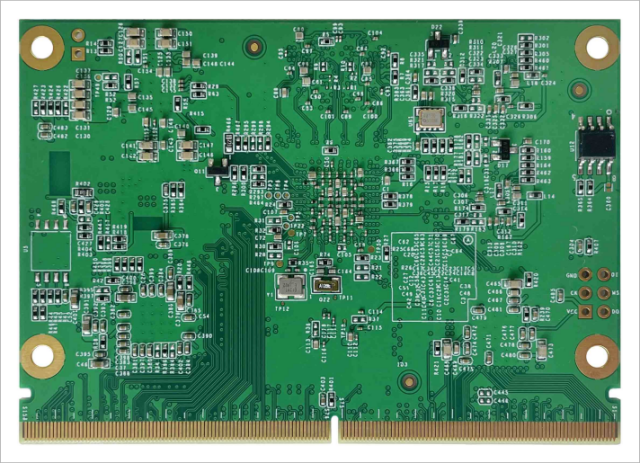

wec-smx8mp核心板，四核arm cortex-a53 cortex-m7处理器，主频最高达1.6ghz；支持lvds/hdmi/dsi显示接口，支持两路千兆网口、com、can、usb、i2c、spi、gpio等丰富的接口。核心板集成了fpga芯片，可提供30 路高速io。
研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。
product model | product model | wec-smx8mp |
processor system | cpu | nxp i.mx 8m plus |
frequency | 1.60 ghz | |
core | 4*cortex-a53 cortex-m7 | |
llc | l3 cache 1 mb | |
cpu tdp | 8w | |
os | android、linux、freertos… | |
memory | technology | support lpddr4l 3200mt/s |
capacity | 4gb | |
storage | emmc | 8gb |
graphics | controller | super tile status buffer |
display | lcd (lvds/edp) | lvds: 4-lane or 8-lane |
mipi_dsi | one 4-lane | |
mipi-csi | support four-channel | |
hdmi | hdmi 2.0a tx supporting one display | |
ethernet | controller | yt8511 |
speed | 10/100/1000 mbps | |
number | 2 ports | |
i/o | usb3.0 | 1 port |
usb2.0 | 1 port (boot) | |
pcie 2.0 | 4 ports | |
com port | 4 ports | |
spi | 1 port | |
pwm | 3 ports | |
i2c | 3 ports | |
i2s | 1 port | |
sd | 1 port | |
can | 2 ports | |
io | 30 ports | |
high-speed io | 33 ports， provided by fpga | |
power | supply voltage | vin: 9v-24v |
environment | operating temperature | standard: -20 ~ 60 °c |
storage temperature | standard: -40 ~ 85 °c | |
humidity | operating: 40 °c @ 95% relative humidity, non-condensing | |
storage: 60 °c @ 95%relative humidity, non-condensing | ||
mechanical | dimensions | 82 mm×58 mm |
