◒ arm cortex-a7处理器，主频最高达800mhz
◒ 支持ddr3l 512mb内存, 8gb emmc存储
◒ 集成两路10/100mbps以太网
◒ 支持lvds显示接口
◒ 支持com、usb、gpio、i2c、spi、高速io等接口
◒ 集成fpga芯片，可提供30 路高速io
◒ 采用mxm接口，由研智科技制定统一的管脚定义规则
"精灵"系统核心板
产品介绍产品规格外形尺寸技术规格书

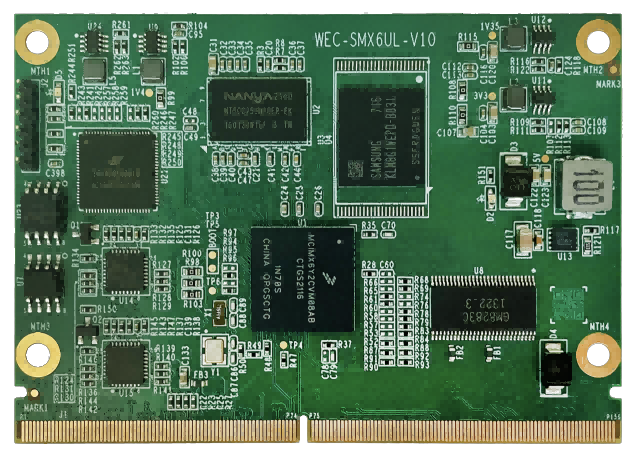

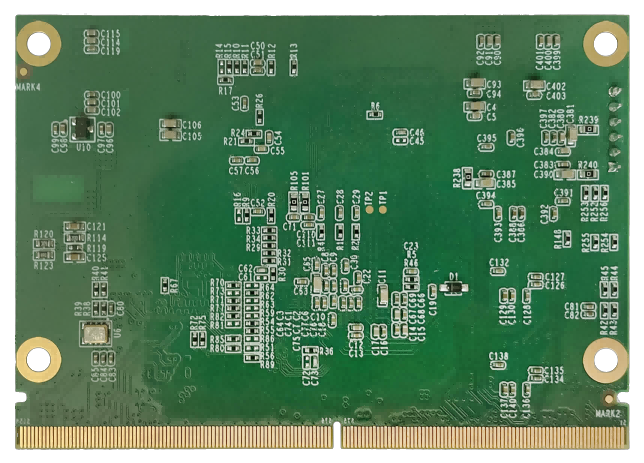

wec-smx6ul核心板，采用arm cortex-a7处理器，主频最高达800mhz；支持lvds显示接口，支持两路百兆网口、com、can、usb、i2c、i2s、gpio等丰富的接口。核心板集成了fpga芯片，可提供30 路高速io。
研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。
product model | product model | wec-smx6ul |
processor system | cpu | i. mx 6ull，mcimx6y2cvm08ab |
frequency | 800mhz | |
core | cortex-a7 | |
llc | l2 cache 128 kb | |
cpu tdp | 4w | |
os | linux | |
memory | technology | support ddr3l |
capacity | 512mb | |
storage | emmc | 8gb |
display | lvds | lvds: single-channel 18/24-bit, up to 1366×768 |
ethernet | controller | rtl8201f |
speed | 10/100 mbps | |
number | 2 ports | |
i/o | usb2.0 | 2 ports |
com port | 6 ports | |
spi | 1 port | |
pwm | 2 ports | |
i2c | 2 ports | |
i2s | 1 port | |
sd | 1 port | |
can | 2 ports | |
io | 20 ports | |
high-speed io | 33 ports ，provided by fpga | |
power | supply voltage | vin: 9v-24v |
environment | operating temperature | standard: -20 ~ 70 °c |
storage temperature | standard: -40 ~ 85 °c | |
humidity | operating: 40 °c @ 95% relative humidity, non-condensing | |
storage: 60 °c @ 95%relative humidity, non-condensing | ||
mechanical | dimensions | 82 mm×58 mm |
