◒ 双核ftc664 双核 ftc310处理器，主频最高达2.0ghz
◒ 支持ddr4 4gb内存
◒ 集成两路千兆以太网
◒ 支持hdmi、dp等多种显示接口
◒ 支持com、usb、pcie、gpio、i2c、高速io等接口
◒ 集成fpga芯片，可提供30 路高速io
◒ 采用mxm接口，由研智科技制定统一的管脚定义规则

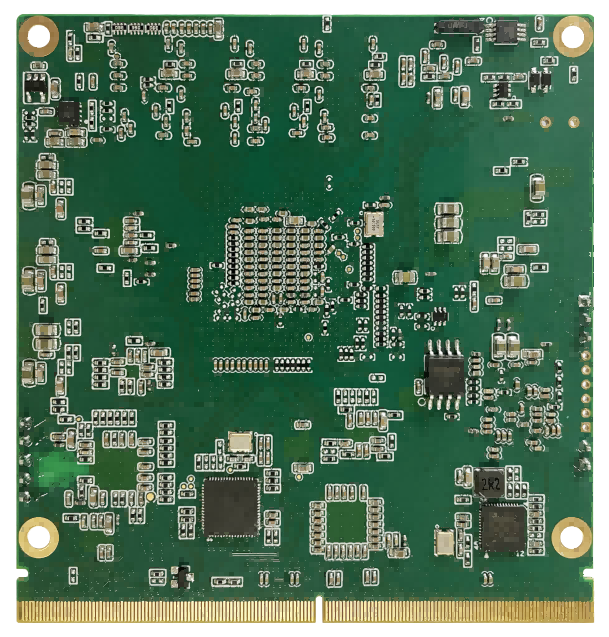

"精灵"系统核心板
产品介绍产品规格外形尺寸技术规格书
wec-se200q核心板，采用双核ftc664 双核 ftc310处理器，主频高达2.0ghz、1.5ghz；支持hdmi、lvds、edp等多种显示接口，支持千兆网口、com、can、usb、pcie、i2c、高速io等丰富的接口。核心板集成了fpga芯片，可提供30 路高速io。
研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。
product model | product model | wec-se2000q |
processor system | cpu | e2000q |
core | ftc664*2 ftc310*2 | |
frequency | 2.0ghz*2, 1.50 ghz*2 | |
llc | l2 cache 2 mb | |
cpu tdp | 5w | |
os | kylin, uos, sylixos, free os, 开源os | |
memory | technology | support ddr4 2400mhz |
capacity | 4gb | |
graphics | controller | / |
display | lcd (lvds/edp) | nc |
dp0 | dp | |
dp1 | support four-channel | |
storage | emmc | 8gb |
ethernet | controller | yt8521sh/rtl8211 |
speed | 10/100/1000 mbps | |
number | 2 ports | |
i/o | usb3.0 | 2 ports |
usb2.0 | 4 ports | |
pcie 3.0 | 4 ports (4x1 or 1x4 or 2x1 1x2) | |
com port | 6 prots 3.3v-ttl(uart1 debug ) | |
spi | 1 port | |
pwm | / | |
i2c | 3 ports | |
i2s | 1 port | |
sd | 1 port | |
can | 2 ports | |
io | 24 ports | |
high-speed io | 33 ports, provided by fpga | |
power | supply voltage | vin: 9-24v |
environment | operating temperature | standard: 0 ~ 60 °c |
storage temperature | standard: -40 ~ 85 °c | |
humidity | operating: 40 °c @ 95% relative humidity, non-condensing | |
storage: 60 °c @ 95%relative humidity, non-condensing | ||
mechanical | pcb size | 82 mm x 85 mm |
