◒ intel第4代celeron bay trail处理器

◒ 支持最高8gb ddr3l 1333mhz内存

◒ 支持hdmi、edp显示接口

◒ 支持2路10/100/1000mbps高速以太网

◒ 支持6路com

◒ 支持1路usb3.0，4路usb2.0

◒ 支持4路pcie×1 (gen3)

◒ 集成fpga，可提供高达30 路高速io

◒ 采用mxm接口，由研智科技制定统一的管脚定义规则

产品介绍产品规格外形尺寸技术规格书

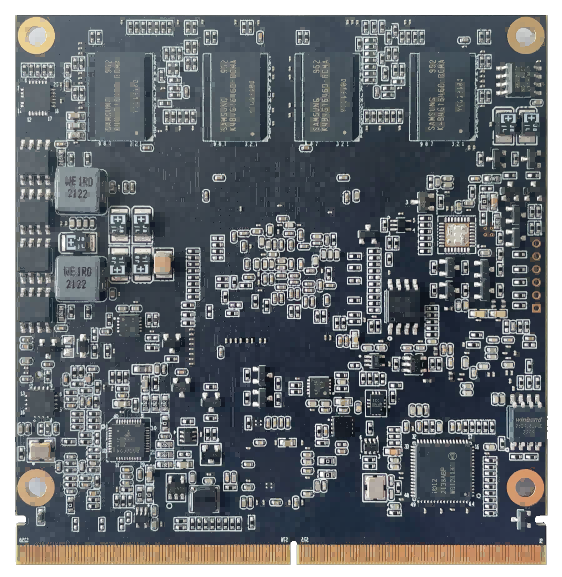

wec-sbtr核心板，处理器采用intel第4代celeronbay trail处理器，支持最高支持8gbddr3l-1333 mhz内存，；支持hdmi、dp等多种显示接口，支持千兆网口、com、usb、mpcie、gpio等丰富的接口。集成fpga芯片，提供高达30 路高速io。

研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。

product model	product model	wec-sj1800	wec-sj1900	wec-se3845
processor system	cpu	j1800	j1900	e3845
	frequency	up to 2.58ghz	up to 2.42ghz	up to 1.91ghz
	core/thread	2/2	4/4	4/4
	llc	1 mb	2 mb	2 mb
	cpu tdp	10w	10w	10w
	bios	ami uefi bios
memory	technology	ddr3l 1333 mhz
	ecc support	n/a
	max. capacity	8gb
	channel / socket	dual channel / on board memory
graphics	controller	intel® hd graphics for intel atom® processor z3700 series
	max. frequency	792 mhz	854mhz	792 mhz
display	dp	1 port (up to 1920 x 1200@ 60hz)
	hdmi	1 port (up to 1920 x 1200@ 60hz)
	multiple display	two displays with each display combinations
serial bus	sm bus	1 port
	can bus	2 ports
expansion	pci express	up to 4 pcie×1 (gen3)
	audio interface	1 intel hd audio interface
ethernet	controller	intel i211/ i211，2 ports
	speed	10/100/1000 mbps
	connector (rj45)	up to 2 ports
i/o	usb3.0	1 ports
	usb2.0	4 ports
	sata	1 port (6 gbps)
	gpio	16 gpios
	high-speed io	up to 33 high-speed io (provided by fpga)
	watchdog	bios support
	com port	6 ports (4 ports 2-wire / 2 ports 8-wire)
	smart fan	system fan(option support)
	spi bus	yes
power	type	dc in
	supply voltage	vin: 9~12v, rtc battery: 2.0v ~ 3.3v
environment	operating temperature	standard: 0 ~ 60 °c
	storage temperature	standard: -20 ~ 75 °c
	humidity	operating: 40 °c @ 95% relative humidity, non-condensing
		storage: 60 °c @ 95%relative humidity, non-condensing
	vibration resistance	3.5 grms
mechanical	dimensions	82 mm×95 mm
