◒ intel第11代酷睿tiger lake处理器
◒ intel® hd graphics，intel® iris® xe graphics
◒ 支持最高32gb lpddr4x 4266mt/s内存
◒ 支持hdmi、edp显示接口
◒ 支持2路10/100/1000mbps高速以太网
◒ 支持6路com
◒ 支持2路usb3.0，4路usb2.0
◒ 支持4路pcie×1 (gen3)
◒ 集成fpga，提供高达30 路高速io
◒ 采用mxm接口，由研智科技制定统一的管脚定义规则

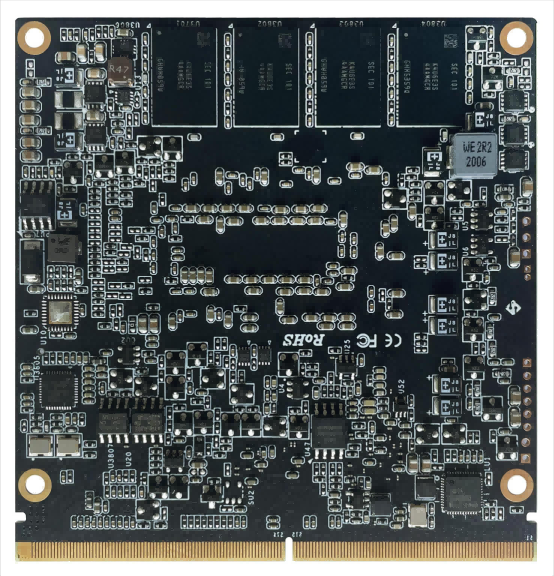

wec-ctgl核心板，处理器采用intel第11代core处理器（tiger lake），支持最高32gb lpddr4x 4266mt/s内存；支持hdmi、edp等多种显示接口，支持千兆网口、com、usb、pcie、gpio、sdio等丰富的接口。集成fpga芯片，提供高达30 路高速io。
研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。
form factor | wec-s630 5e | wec-s111 5 | wec-s111 5e | wec-s112 5 | wec-s1135 | wec-s1165 | |
processo r system | cpu | 6305e | i3-1115g4 | i3-1115g4 e | i3-1125g4 | i5-1135g7 | i7-1165g7 |
frequency | 1.80ghz | up to 4.10ghz | up to 3.9ghz | up to 3.70 ghz | up to 4.20ghz | up to 4.7ghz | |
core/thread | 2/2 | 2/4 | 2/4 | 4/8 | 4/8 | 4/8 | |
llc | 4 mb | 6 mb | 6 mb | 8 mb | 8 mb | 12 mb | |
cpu tdp | 15w | 28w | 28w | 28w | 28w | 28w | |
bios | ami uefi bios | ||||||
memory | technology | lpddr4x 4266mt/s | |||||
ecc support | n/a | ||||||
max. capacity | 32gb | ||||||
channel / socket | dual channel / on board memory | ||||||
graphics | controller | intel® uhd graphics | intel® iris® xe graphics | ||||
max. frequency | 1.25 ghz | 1.25 ghz | 1.25 ghz | 1.25 ghz | 1.3ghz | up to 96 eus, 1.3ghz | |
display | edp | ||||||
hdmi | 4096x2304@60hz | ||||||
mipi-dsi | 4096x2304@60hz | ||||||
3d/hw acceleration | hardware encode/transcode of hd content (including hevc) directx 12 support opengl 4.5, 4.4/4.3 and es 2.0 support opencl 2.1, 2.0/1.2 support | ||||||
multiple display | three displays with each display combinations | ||||||
serial bus | smbus yes | yes | |||||
i2c bus yes | yes | ||||||
can bus | yes | ||||||
expansio n | pci express x1 (gen3) | up to 4 pcie x1 | |||||
fpga | up to 33 hio（high-speed io），provided by fgpg（lfd2nx-40-8bg256i） | ||||||
audio interface | 1 intel hd audio interface | ||||||
ethernet | controller | intel i219/i211 | |||||
speed | 10/100/1000 mbps | ||||||
connector (rj45) | up to 2 ports | ||||||
i/o | usb3.0 | 2 ports | |||||
usb2.0 | 4 ports | ||||||
sata3.0 | 1 port (6gbps) | ||||||
gpio | 16 gpios | ||||||
tpm | tpm2.0 | ||||||
watchdog | bios support | ||||||
com port | 6 ports (4 ports 2-wire / 2 ports 2-wire) | ||||||
smart fan | system fan（option support） | ||||||
spi bus | yes | ||||||
power | type | dc in | |||||
supply voltage | vin: 9~12v, rtc battery: 2.0v ~ 3.3v | ||||||
environ ment | operating temperatur e |
standard: 0 ~ 60 °c | |||||
storage temperatur e |
standard: -20 ~ 75 °c | ||||||
humidity | operating: 40 °c @ 95% relative humidity, non-condensing | ||||||
storage: 60 °c @ 95%relative humidity, non-condensing | |||||||
vibration resistance | 3.5 grms | ||||||
mechanical | dimensions | 82mm*85mm | |||||
