◒ intel第12代赛扬elkhart lake处理器

◒ intel® hd graphics，intel® iris® xe graphics

◒ 显示接口支持hdmi、edp

◒ 支持10/100/1000mbps高速以太网

◒ 支持6路com

◒ 支持4路usb3.0，10路usb2.0

◒ 支持5路pcie×1 (gen3)

◒ 采用mxm接口，由研智科技制定统一的管脚定义规则

产品介绍产品规格外形尺寸技术规格书

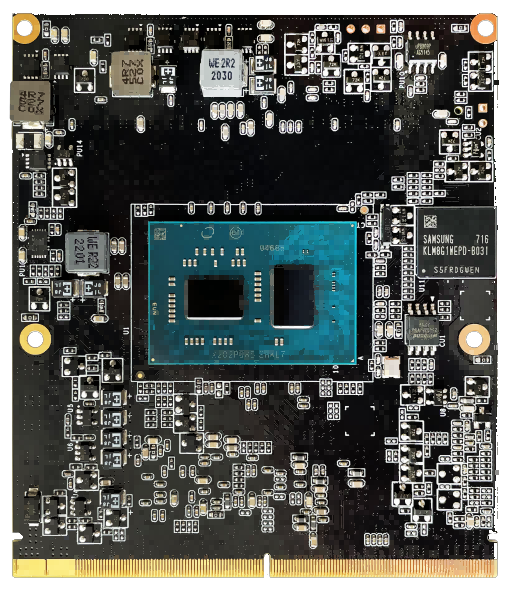

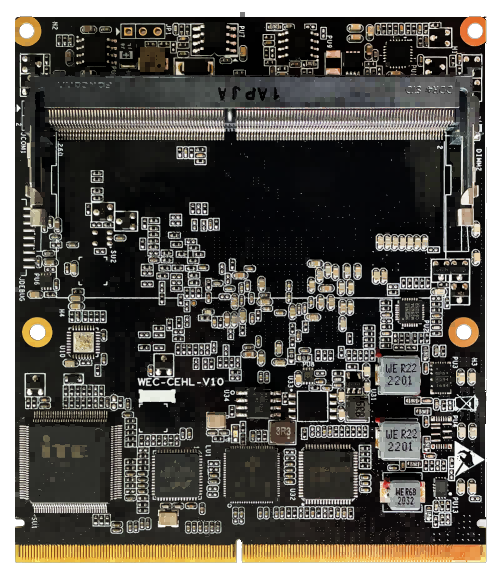

wec-cehl核心板，处理器采用intel第12代celeron elkhart lake处理器，支持ddr4-3200 mhz内存，最高支持32gb；支持hdmi、edp等多种显示接口，支持千兆网口、com、usb、mpcie、gpio等丰富的接口。

研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。

processor system	cpu	intel celeron j6412		intel celeron j6413		intel celeron j6426
	frequency	up to 2.6ghz		up to 3.0 ghz		up to 3.0 ghz
	core/thread	4/4		4/4		4/4
	llc	1.5mb		1.5mb		1.5mb
	cpu tdp	10w		10w		10w
	bios	ami uefi bios
memory	technology	ddr4-3200 mhz
	ecc support	n/a
	max. capacity	32gb
	emmc	8gb
	channel / socket	1 * so-dimm slot
graphics	controller	intel® uhd graphics for 10th gen intel® processors
	max. frequency	800mhz	800mhz		850mhz
display	edp	4096×2160 @60hz
	dp	4096×2160 @60hz
	hdmi	4096×2160 @60hz
	mipi-dsi	4096×2160 @60hz
	3d/hw acceleration	hardware encode/transcode of hd content
		opengl support
		opencl support
	multiple display	three displays with each display combinations
serial bus	sm bus	1 port
expansion	pci express	up to 5 pcie×1（gen. 3）
	audio interface	1 intel hd audio interface
ethernet	controller	intel i211 gbe
	speed	10/100/1000 mbps
i/o	usb3.0	4 ports
	usb2.0	10 ports
	can	2 ports
	sata3.0	2 ports (6gbps)
	gpio	10 gpios
	watchdog	bios support
	com port	6 ports (4 ports 2-wire / 2 ports 8-wire)
	smart fan	system fan(option support)
	spi bus	yes
power	type	dc in
	supply voltage	vin: 9~12v, rtc battery: 2.0v ~ 3.3v
environment	operating temperature	standard: 0 ~ 60 °c
	storage temperature	standard: -20 ~ 75 °c
	humidity	operating: 40 °c @ 95% relative humidity, non-condensing
		storage: 60 °c @ 95%relative humidity, non-condensing
	vibration resistance	3.5 grms
mechanical	dimensions	82 mm×95 mm
