◒ 四核arm cortex-a76 四核 cortex-a55，主频高达2.4ghz
◒ 集成arm mali g610 mc4 3d gpu
◒ soc集成npu具有高达6tops的ai算力
◒ 最高支持8k@60fps h.265视频解码、8k@30fps h.265/h.264视频编码
◒ 最高支持32gb lpddr4/lpddr4x/lpddr5内存
◒ 支持hdmi、mipi dsi、edp等多种显示接口
◒ 支持千兆网口、com、usb、pcie、gpio、高速io等接口
◒ 集成fpga，提供高达30 路高速io
◒ 采用mxm接口，由研智科技制定统一的管脚定义规则

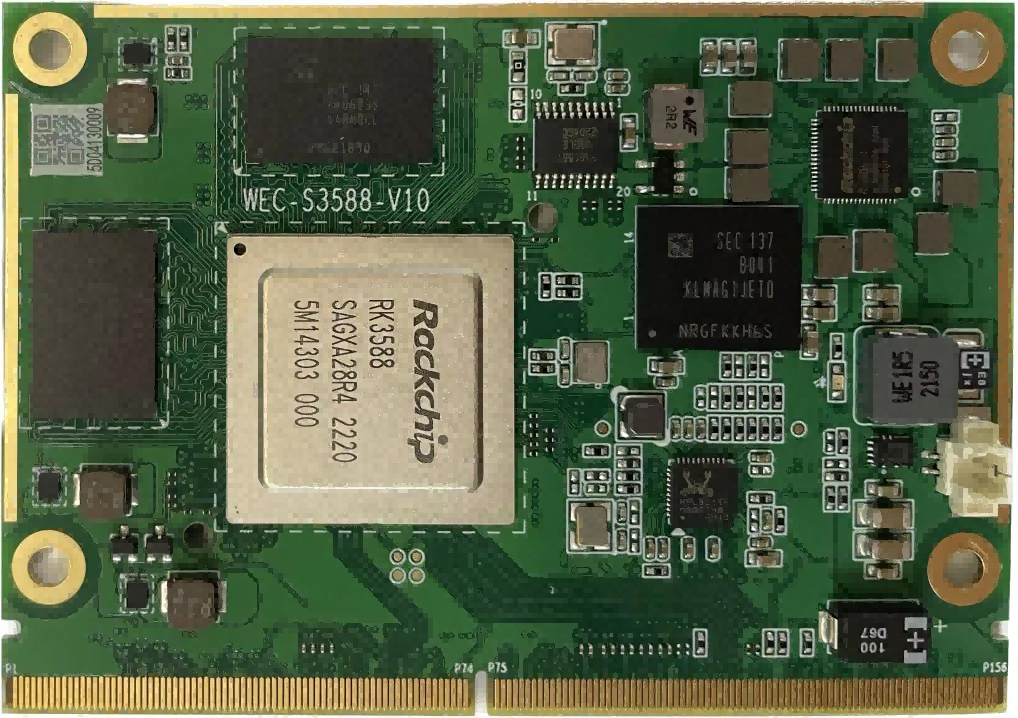

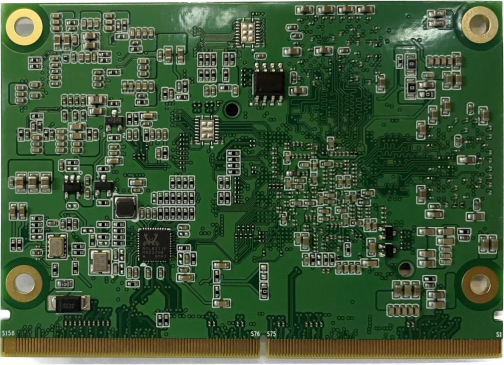

wec-s3588核心板，处理器为arm四核cortex-a76 四核 cortex-a55，主频最高达2.4ghz；gpu内置mail-g52 2ee图形处理器；vpu支持高清视频编解码，支持8m isp、支持hdr；npu支持高达6tops的ai算力。支持hdmi、mipi dsi、edp等多种显示接口，支持两路千兆以太网、多路com、can、usb、pcie、gpio、sdio、高速io等丰富的接口。集成fpga芯片，可提供30 路高速io。
研智科技“精灵”系列核心板，采用自主定义的统一规则的mxm接口，具有强大兼容性。
product model | product model | wec-s3588 |
processor system | cpu | rk3588 |
core | 4×cortex-a76 4×cortex-a55 | |
frequency | up to 2.4ghz | |
cpu tdp | 5 w | |
memory | technology | lpddr4/lpddr4x/lpddr5 |
max. capacity | up to 32gb | |
ecc support | yes | |
channel / socket | dual channel / on board memory | |
storage | onboard storage | up to 128gb emmc |
graphics | controller | mali g610 mc4 |
3d/hw acceleration | opengl es 1.1/2.0/3.2, opencl 20 and vulkan 1.2，special 2d | |
neural process unit | processing performance | up to 6 tops |
convolution operation | support int4/int8/int16/fp16/bf16/tf32 | |
display | hdmi | 2 ports hdmi 2.0，up to 4k@60hz and 4096x2304@60hz |
edp | 2 ports e dp 1.3，up to 2560x1600@60hz | |
mipi_dsi | 2 port，up to 1920x1080@60hz | |
expansion | pci express x1 (gen2) | up to 4 pcie×1 |
audio interface | i2s×1 | |
serial bus | i2c bus | yes |
can bus | yes (optional) | |
ethernet | controller | ar8035 |
speed | 10/100/1000 mbps | |
connector (rj45) | up to 2 ports | |
i/o | sata3.0 | 1 port (6gbps) |
usb3.0 | 1 port (5gbps) | |
usb2.0 | 2 ports (480mbps, include 1 client port) | |
com port | 4 ports (4 ports 2-wire) | |
gpio | 29 gpios 32 high speed io | |
high-speed io | 32 ports，provided by fpga | |
watchdog | 65536 level, 0~65535 sec | |
spi bus | 1 port | |
sdio (sd card) | 1 port | |
csi | 2 ports (1 port 2-lane / 1 port 4-lane) | |
smart fan | n/a | |
wifi / bt module | n/a | |
power | type | at/atx : vin |
supply voltage | vin: 12v, rtc battery: 2.0v ~ 3.3v | |
power consumption (max.) | 8 w | |
power consumption (idle) | 5 w | |
environment | operating temperature | standard: 0 ~ 60 °c (32 ~ 140 °f) |
extended: -40 ~ 85 °c (-40 ~ 185 °f) | ||
storage temperature | -40 ~ 85 °c (-40 ~ 185 °f) | |
humidity | operating: 40 °c @ 95% relative humidity, non-condensing | |
storage: 60 °c @ 95%relative humidity, non-condensing | ||
vibration resistance | 3.5 grms | |
mechanical | dimensions | 82 mm×58 mm |
